Dongfeng Tractor truck Tractor head 375HP 6X4
1. Product Description
| Specification |
| Drive mode | 6×4 | |
| Engine | Model | Cummins L375 20 |
| Max. power(Kw/rpm) | 275/2200 |
| Max. torque(N.m/rpm) | 1400/1300-1500 |
| Cylinder bore ×Stroke(mm) | 114×145 |
| Displacement(ml) | 8900 |
| Type of fuel | Diesel |
| Compression ratio | 16.6:1 |
| No. of valves | 4 |
| Cab | D310-H1 | height ceiling, double berth |
| Capacity | 3 persons |
| Gearbox | Type | Fast 12JS180T |
| Max. torque(N.m) | 1800 |
| Gear ratio | 15.53 12.08 9.39 7.33 5.73 4.46 3.48 2.71 2.10 1.64 1.28 1.00 |
| Clutch | Φ430mm | pull-type diaphragm spring clutch |
| Frame H×W× T(mm) | 300×90×(8+5) |
| Frame width 940 (front ), Frame width 810 ( rear ) |
| No. of spring leaves | 3/10 |
| Tyre | Size | 12.00R20 |
| Air conditioner | A/C |
| Dimensions | Overall dimension (mm) | 7060×2500×3950 |
| Wheel base (mm) | 3400+1350 |
| Front/Rear tread(mm) | 2027/1820 |
| App./Dep. angel (°) | 18/32 |
| Min. ground clearance(mm) | 240 |
| Performance | Max. speed(Km/h) | 98 |
| Max. gradeability(%) | 35 |
| Min. turning diameter(m) | 16 |
| Fuel consumption(L/100Km) | 38 |
| Mass | Curb weight(Kg) | 9950 |
| G.V.W (Kg) | 25000 |
| Trailer G.V.W(Kg) | 40000 |

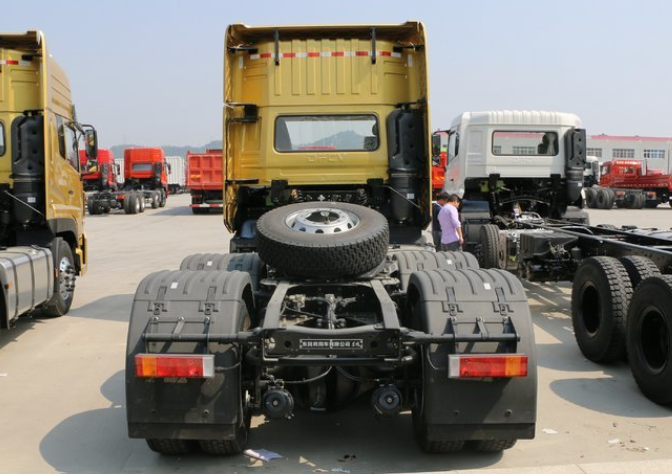

2. Picture In Detials
4. Company Information
We Zhengzhou Dongfeng Mid-south Enterprise Co., Ltd, which as the secondary subsidiary company of Dongfeng Group, is specialized in exporting dongfeng Commercial & Passenger vehicles, Construction & Engineering Machinery,Agriculture machinery, spare parts and so on.
With wide range variety of products series, high quality, excellent service and large number professional salesmen, till now, our products have been exported over 60 countries all over the world such as Pakistan, Bangladesh, Saudi Arabia,Kuwait, Libya, Nigeria, Syria, Jordan, Iraq, Iran, Vietnam, etc. since its establishment.
